Thread Cutting Insert for Clean and Accurate Thread Cutting

Durability in thread cutting. different turning inserts for different threading sizes. The type of carbide grade and the coating on inserts is originally intended for turning steel and stainless steel, but it also performs when turning other alloys.

  • Usage: Turning Inserts

  • Model Number: ISO metric

  • Chip-Breakers: none

Thread Cutting Insert for Clean and Accurate Thread Cutting Details

Product Information:

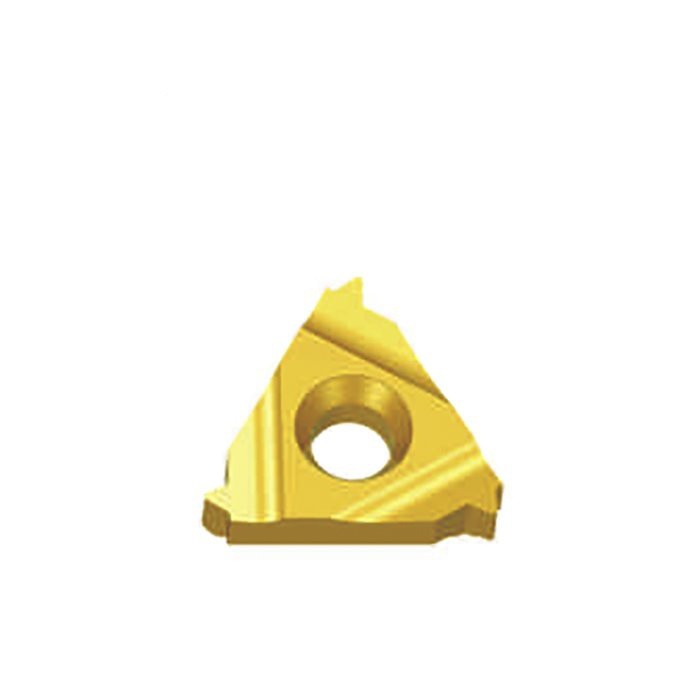

22ER insert purpose is for external turning. Orientation of insert Right. Thread cutting inserts will bring you satisfaction like it did to other experienced masters of turning business. High wolfram hard metal carbide provides high temperature resistance, at the same time the surface coating enables smooth operation of the chip from the work process. Geometry of inserts in this set is made in special ISO dimensions for precise making of threads in different pitch sizes metric angle.


Specifications:

Type

Range of thread pitch

(mm)

Insert Dimestions (mm)

Grade

IC

S

X

Y

VT1320

VT1520

16ER0.50ISO

0.5

9.525

3.52

0.4

0.6

O

16ER1.00ISO

1

9.525

3.52

0.7

0.7

O

16ER1.25ISO

1.25

9.525

3.52

0.9

0.8

O

16ER1.50ISO

1.5

9.525

3.52

1

0.8

O

16ER2.00ISO

2

9.525

3.52

1.3

1

O

16ER2.50ISO

2.5

9.525

3.52

1.5

1.1

O

16ER3.00ISO

3

9.525

3.52

1.6

1.2

O

22ER3.50ISO

3.5

12.7

4.65

2.3

1.6

O

22ER4.00ISO

4

12.7

4.65

2.3

1.6

O

22ER4.50ISO

4.5

12.7

4.65

2.4

1.7

O

22ER5.00ISO

5

12.7

4.65

2.5

1.7

O

11IR1.00ISO

1

6.35

3.05

0.7

0.6

O

11IR1.25ISO

1.25

6.35

3.05

0.9

0.8

O

11IR1.50ISO

1.5

6.35

3.05

1

0.8

O

11IR1.75ISO

1.75

6.35

3.05

1.1

0.9

O

11IR2.00ISO

2

6.35

3.05

1.1

0.9

O

16IR0.50ISO

0.5

9.525

3.52

0.4

0.6

O

16IR1.00ISO

1

9.525

3.52

0.7

0.6

O

16IR1.25ISO

1.25

9.525

3.52

0.9

0.8

O

16IR1.50ISO

1.5

9.525

3.52

1

0.8

O

16IR2.00ISO

2

9.525

3.52

1.3

1

O

16IR2.50ISO

2.5

9.525

3.52

1.5

1.1

O

16IR3.00ISO

3

9.525

3.52

1.5

1.1

O

22IR3.50ISO

3.5

12.7

4.65

2.3

1.6

O

22IR4.00ISO

4

12.7

4.65

2.3

1.6

O

22IR4.50ISO

4.5

12.7

4.65

2.4

1.6

O

22IR5.00ISO

5

12.7

4.65

2.3

1.6

O

• : Recommended Grade

O: Optional Grade


Application:

Durability in thread cutting. different turning inserts for different threading sizes. The type of carbide grade and the coating on inserts is originally intended for turning steel and stainless steel, but it also performs when turning other alloys.
